Text Parsers (Text Parsing Expressions)

Text Parsers extract named variables from incoming text logs and text messages so they can be filtered, correlated, and evaluated in alerting rules.

Purpose and Scope

Text Parsers are designed for parsing textual input, such as logs or external text messages, and transforming them into a set of named variables (key value pairs).

These variables can then be: - used in filters - referenced in alert conditions - evaluated as counters or status-like values

Text Parsers do not generate counters or status objects directly.
Their sole output is a list of extracted variables.

Parser Categories in UI

In the NetCrunch UI, Text Parsers are organized into two independent sections:

Text Log Parsers
Used for parsing log entries coming from log monitoring sources.
Text Message Parsers
Used for parsing externally received text messages, such as emails or custom text inputs.

Both categories work identically in terms of parsing logic and outputs, but are applied to different data sources.

This is fundamentally different from Data Parsers, which process structured external data and output counters and status objects. Data Parsers are described separately in the Data Parsers chapter.

Parsing Expressions

Each parsing expression: - processes a single text input - declares a fixed list of output variables - assigns values to these variables based on parsing rules

Only declared variables can be produced and later used in filters.

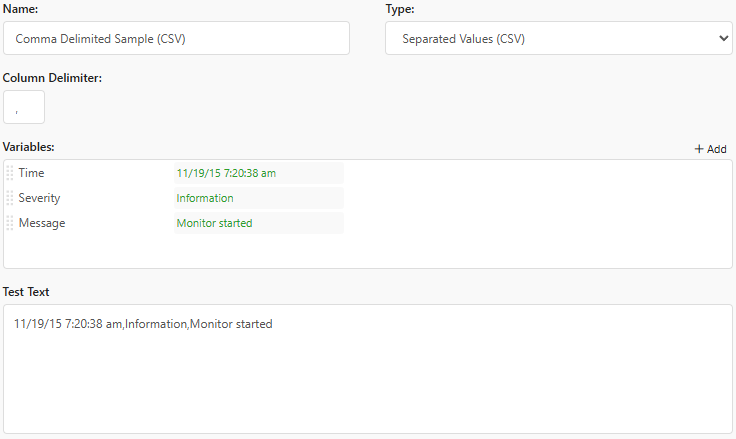

Comma Separated Values

This is the simplest parsing format.

Variable names describe each column
The default separator is a comma

Key Value Pairs

This format parses text encoded as key value pairs separated by two delimiters.

Example:

from:John;val:10

Configuration: - Pair Separator: ; - Value Separator: :

INI-like Encoding Example


speed = 10
acceleration = 0

Configuration: - Pair Separator: \n - Value Separator: =

Regular Expression

Regular expressions allow advanced pattern matching.

NetCrunch uses JavaScript-compatible regular expressions
Variables are matched by the order of capturing groups

Example – Log4J Log Format

Pattern: (\d{4}-\d{2}-\d{2}) (\d{2}:\d{2}:\d{2},\d{3}) (.∗?)(.∗?) ([^ ]) +([^ ]) - (.*)$

Mapped variables: - Date - Time - Thread - Severity - Module - Message

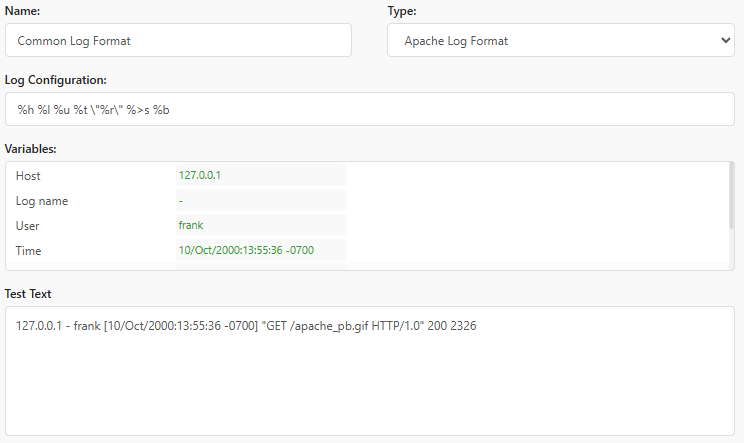

Apache Common Log Format

This parser decodes Apache logs using the Common Log Format.

You only need to provide the format string used in the Apache configuration.

Refer to Apache documentation:
https://httpd.apache.org/docs/2.4/logs.html#common

XPath and DOM Selectors

Text Parsers support XML extraction using XPath.

Only paths returning single values are supported.

Example XML


<doc>
    <amount>10.2</amount>
    <user name="John" id="123"/>
</doc>

Extractable paths: - /doc/amount - //user/@name - //user/@id

Conditional Selectors

You can select nodes conditionally: /doc/user[@id='123']/@name

DOM Selectors

XPath expressions also support DOM (CSS-like) selectors.

To extract attributes, NetCrunch extends CSS syntax using the | character.

Equivalent selectors: - doc > amount - user|name - user|id

JSON Path

Text Parsers support JSON Path expressions.

Only paths returning single values are supported.

Example JSON


{
  "doc": {
    "amount": 22,
    "user": {
      "name": "John",
      "id": 100
    }
  }
}

Extractable paths: - $.doc.amount - $..user.name - $..user.id

JavaScript Parser

JavaScript provides full flexibility for text parsing.

Uses a sandboxed NodeJS (V8) engine
Executes in strict mode
Automatically terminated on timeout

Input

The input text is available in the text variable.

Output

The script must assign an object to the result variable.
Its properties must match declared parser variables.

Example

Test Text


{
  "probe_1": {
    "temp": 10
  }
}

Variables

Temperature

Script


// Parse input data
const data = JSON.parse(text);

// Assign parser output
result = {
  temperature: data.probe_1.temp
};

Python Parser

Python parsers allow custom parsing logic using Python 3.7.

No external modules can be loaded
Built-in support for JSON and XML parsing is provided
